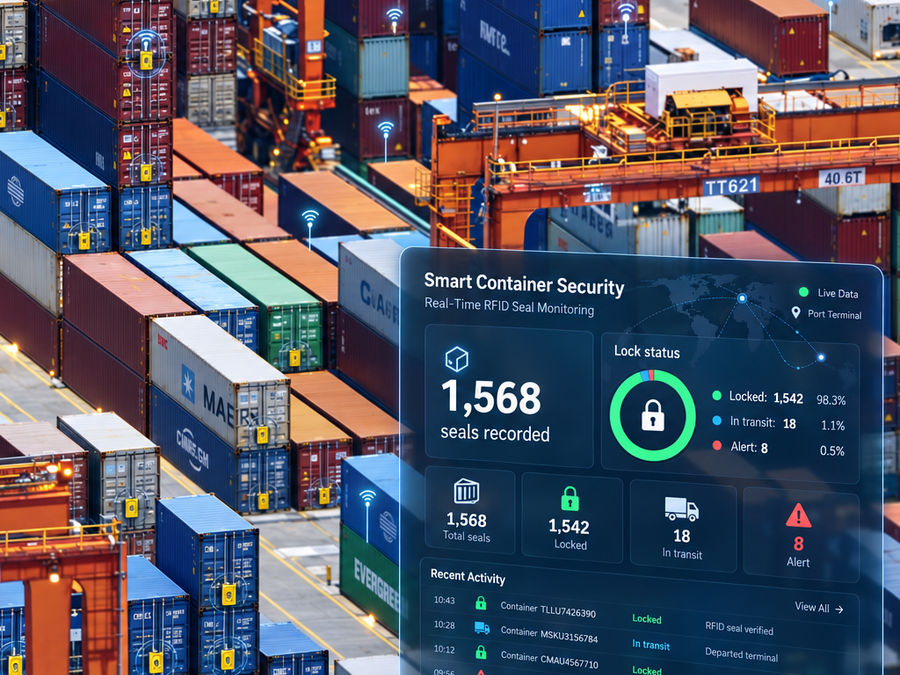

Tamper-Evident UHF RFID Seal
High-impact steel RFID seal with ABS housing, anti-spin design, and embedded UHF RFID — ISO 17712:2013 high-security certified and C-TPAT compliant.
Tamper-Evident UHF RFID Seal
The Smart Amto RFID Seal combines the physical protection of a high-security seal with automatic UHF RFID identification. Constructed from high-impact steel encased in durable ABS, the anti-spin design ensures any manipulation attempt is immediately visible during inspection. ISO 17712:2013 high-security certified and C-TPAT compliant, it is accepted by border agencies worldwide for international ocean, rail, and road shipments. Each seal carries a unique RFID identifier that creates a verifiable, tamper-evident chain of custody — eliminating manual seal-number entry and accelerating gate-in/gate-out processes.
Key Benefits
- ISO 17712:2013 high-security certified
- C-TPAT compliant — accepted by border agencies worldwide
- Anti-spin design — manipulation is immediately visible
- High-impact steel + durable ABS construction
- Unique UHF RFID identifier per seal — no manual entry
- Accelerates gate-in/gate-out — replaces manual clipboards
- Custom laser-etched barcodes, serial numbers, and branding
- Irreversible tamper evidence — cutting or removal is permanent
- Multiple color options for visual cargo identification
- Integrates with existing terminal operating systems
Technical Specifications
RFID Frequency
860–960 MHz (UHF)
RFID Protocol
EPC Gen2 / ISO 18000-63
Security Standard
ISO 17712:2013 High-Security
Compliance
C-TPAT
Read Range
Up to 6 m (reader dependent)
Operating Temp
-40°C to +70°C
Memory
EPC 96-bit (configurable)
Material
High-impact steel / ABS
Design
Anti-spin, one-time-use
Marking
Custom laser-etched barcode + serial
Where This Product Is Used
Shipping containers
Semi-trailers
High-value cargo
Cross-border shipments
International shipments
Distribution center transportation
Intermodal freight
Global ocean freight
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
Tamper-Evident UHF RFID Cable Seal
Flexible steel-cable security seal with embedded UHF RFID for trailers, containers, railcars, tankers and warehouse cages — combining physical tamper evidence with automatic electronic identification.
Tamper-Evident UHF RFID Cable Seal
The Smart Amto RFID Cable Seal combines a high-tensile steel cable with a tamper-evident one-time locking body and an embedded UHF RFID transponder. The flexible cable design accommodates a wider range of door handles, hasps and locking points than rigid bolt-style seals — making it the preferred choice for trailers, railcars, tankers, warehouse cages and other assets where a flexible sealing loop is required. Each seal carries a unique EPC identifier that is automatically read at RFID-equipped gates and portals, eliminating manual seal-number entry and creating a verifiable electronic chain of custody from origin to destination. Custom laser-etched serial numbers, barcodes and company branding are available for dual-mode verification and visual identification.
Key Benefits
- High-tensile steel cable — resistant to cutting and manipulation
- Tamper-evident one-time locking body — removal is irreversible and immediately visible
- Embedded UHF RFID — automatic identification at gates and portals without manual scanning
- Unique EPC identifier per seal — verifiable electronic chain of custody
- Flexible cable accommodates trailers, railcars, tankers and warehouse cages
- Custom laser-etched serial numbers, barcodes and company branding
- Multiple cable lengths and diameters to suit different applications
- Rated for outdoor operation across a wide temperature range
- Compatible with Smart Amto gate readers and visibility platform
- Available in multiple colors for visual cargo segregation
Technical Specifications
RFID Frequency
860–960 MHz (UHF)
RFID Protocol
EPC Gen2 / ISO 18000-63
Memory
EPC 96-bit (configurable up to 512-bit)
Read Range
Up to 6 m (reader dependent)
Cable Material
High-tensile steel wire
Cable Lengths
Multiple options — contact for details
Cable Diameter
Multiple options — contact for details
Body Material
Zinc alloy / ABS housing
Operating Temp
-40°C to +70°C
Marking
Custom laser-etched barcode + serial
Where This Product Is Used
Semi-trailers and dry vans
Shipping containers
Railcars and intermodal units
Tankers and bulk carriers
Warehouse cages and roll cages
High-value and sensitive cargo
International and cross-border freight
Port and terminal operations
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
GPS Connected RFID Electronic Cable Seal
An intelligent connected cargo-security device combining tamper monitoring, UHF RFID identification and GPS location reporting for high-value and sensitive shipments.
1,284
Active Seals
847
In Transit
3
Alerts
Dallas, TX Distribution Center
From: Bentonville, AR · 467 mi · 6h 42m
GPS Connected RFID Electronic Cable Seal
The Smart Amto GPS RFID Cable Seal is a premium intelligent cargo-security device designed for high-value and sensitive shipments traveling through global transportation networks. It combines the physical tamper evidence of a steel cable seal with an embedded UHF RFID transponder for automatic identification at fixed infrastructure points, and GPS/GNSS location capability for visibility between those points. Cellular connectivity enables real-time tamper alerts, location reports and geofence notifications to be delivered to the Smart Amto cloud platform or directly to customer systems via API. Configurable reporting intervals and motion-triggered events allow the device to be optimized for battery life across multi-day or multi-week transit deployments. Exact specifications vary by selected hardware model and service plan.
Key Benefits
- UHF RFID identification at fixed gates, portals and checkpoints
- GPS/GNSS location reporting between fixed RFID read points
- Real-time tamper alerts — immediate notification on seal-open events
- Cellular connectivity (4G LTE / LTE-M / NB-IoT) for cloud reporting
- Geofence alerts — notifications on entry/exit of defined zones
- Configurable reporting intervals for battery-life optimization
- Motion-triggered reporting — higher frequency when in transit
- Full trip history — location, tamper and event log stored in cloud
- REST API and MQTT delivery to customer systems
- High-tensile steel cable with tamper-evident one-time locking body
Technical Specifications
RFID Frequency
860–960 MHz (UHF)
RFID Protocol
EPC Gen2 / ISO 18000-63
GNSS
GPS / GLONASS / BeiDou
Location Accuracy
< 3 m CEP (open sky)
Cellular
4G LTE, LTE-M, NB-IoT (model dependent)
Tamper Detection
Seal-open alert (immediate)
Reporting Interval
Configurable — 1 min to 24 hrs
Battery Life
Up to 6 months (transit mode)
Operating Temp
-20°C to +60°C
Connectivity
Smart Amto Cloud / REST API / MQTT
Where This Product Is Used
High-value cargo and electronics
Pharmaceutical and temperature-sensitive shipments
International and cross-border freight
Customs-controlled and bonded cargo
Trailer and container security in transit
Sensitive government and defense logistics
Retail and consumer goods supply chains
Multi-modal intermodal shipments
Connected Cargo Security Flow
Seal
GPS / Cellular Network
Smart Amto Cloud
Customer Dashboard
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.

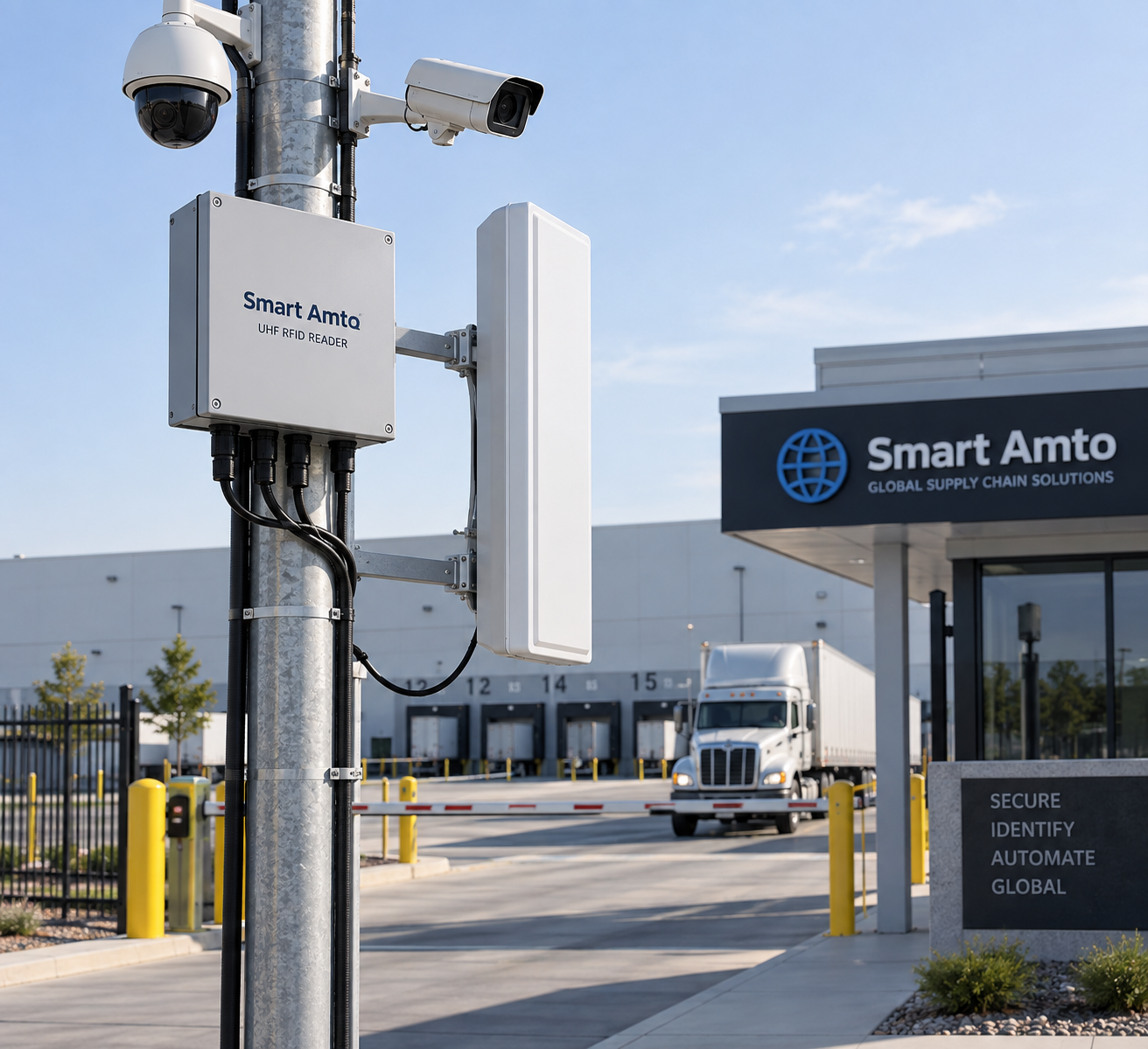

Ruggedized UHF RFID Reader and Antenna
An industrial-grade ruggedized UHF RFID reader and antenna platform for permanent installation at guard gates, dock doors, truck lanes, outdoor yards and warehouse portals worldwide.
Ruggedized UHF RFID Reader and Antenna
The Smart Amto Ruggedized UHF RFID Reader and Antenna is an industrial-grade reader platform designed for permanent installation in demanding logistics and industrial environments. It supports multiple antenna ports for wide-area coverage across vehicle lanes, dock doors and warehouse portals, and delivers high read rates for simultaneous identification of multiple tagged assets — trailers, vehicles, seals, pallets and containers — as they pass through a read zone. Ethernet and industrial communications interfaces connect the reader to edge controllers, gate-management systems and enterprise platforms. GPIO ports enable direct integration with vehicle detection sensors, traffic lights, barriers and alarms. The reader supports MQTT and REST API event delivery, configurable read profiles and remote management via the Smart Amto cloud portal. Weather-resistant enclosure options are available for outdoor installations.
Key Benefits
- Multiple antenna ports for wide-area coverage across vehicle lanes and portals
- High read rate — simultaneous identification of multiple tagged assets
- GPIO ports for direct integration with sensors, barriers, lights and alarms
- MQTT and REST API event delivery to edge controllers and enterprise systems
- Configurable read profiles — power, sensitivity, antenna switching and filtering
- Edge processing and offline event buffering during network interruptions
- Remote management, firmware updates and diagnostics via cloud portal
- Ethernet and industrial communications interfaces
- Weather-resistant enclosure options for outdoor gate installations
- Extended operating temperature range for extreme environments
Technical Specifications
RFID Standard
EPC Gen2 v2 / ISO 18000-63
Frequency
860–960 MHz (region dependent)
Antenna Ports
4 ports (standard); 8-port models available
Max Read Rate
1,000+ tags/sec
Connectivity
Ethernet (RJ45); Wi-Fi and cellular are optional
API
REST (JSON) + MQTT
GPIO
4 inputs / 4 outputs (standard)
Power
PoE+ (802.3at) or DC input
Operating Temp
-4°F to 140°F/ -20°C to +60°C
Enclosure
IP54 standard; IP67 outdoor option
Where This Product Is Used

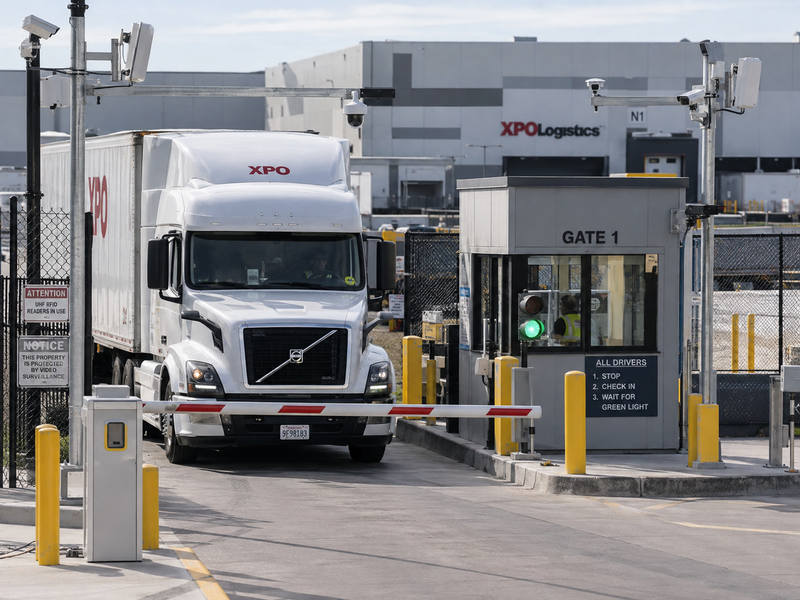

Guard gates and distribution center entrances
Truck lanes and dock doors
Outdoor yards and manufacturing facilities
Container terminals and warehouse portals
Ports and intermodal facilities
Conveyor and sortation systems
Cold-storage and temperature-controlled facilities
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
UHF RFID Antenna
High-performance UHF RFID antennas for vehicle lanes, dock doors, warehouse portals, conveyor systems and outdoor identification applications — circular and linear polarization options.
UHF RFID Antenna
Smart Amto offers a range of UHF RFID antennas engineered for fixed logistics and industrial RFID installations. Circular-polarized antennas deliver reliable reads regardless of tag orientation — ideal for vehicle lanes, dock doors and portal applications where tags may be mounted at varying angles. Linear-polarized antennas provide focused, high-gain coverage for applications where tag orientation is consistent, such as conveyor systems and pallet portals. Long-range directional antennas extend read zones across wide vehicle lanes and outdoor yards. Compact near-field antennas suit tight installations at dock doors and conveyor merge points. All antennas are rated for outdoor operation and are compatible with Smart Amto fixed RFID readers and standard industry readers.
Key Benefits
- Circular-polarized options for reliable reads regardless of tag orientation
- Linear-polarized options for focused high-gain coverage on consistent-orientation applications
- Long-range directional antennas for wide vehicle lanes and outdoor yards
- Compact near-field antennas for tight dock-door and conveyor installations
- IP67-rated outdoor construction — resistant to rain, dust and UV exposure
- Wide operating temperature range for extreme indoor and outdoor environments
- Standard RP-TNC and N-type connector options
- Multiple mounting options — pole, wall, overhead and portal frame
- Compatible with Smart Amto RFID readers and standard industry readers
- Available in multiple gain ratings to suit read-zone requirements
Technical Specifications
Frequency
860–960 MHz (UHF)
Polarization
Circular (RHCP) / Linear (options)
Gain
6 dBic – 9 dBic (model dependent)
Connector
RP-TNC / N-type (model dependent)
VSWR
≤ 1.5:1
IP Rating
IP67
Operating Temp
-40°C to +70°C
Mounting
Pole / wall / overhead / portal frame
Cable
Integrated cable options available
Compatibility
Smart Amto readers + standard UHF readers
Where This Product Is Used
Vehicle lane RFID portals
Dock door identification
Warehouse pallet portals
Conveyor and sortation systems
Outdoor yard and gate installations
Port terminal RFID infrastructure
RFID seal and vehicle tag detection
Frequently Paired With
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.

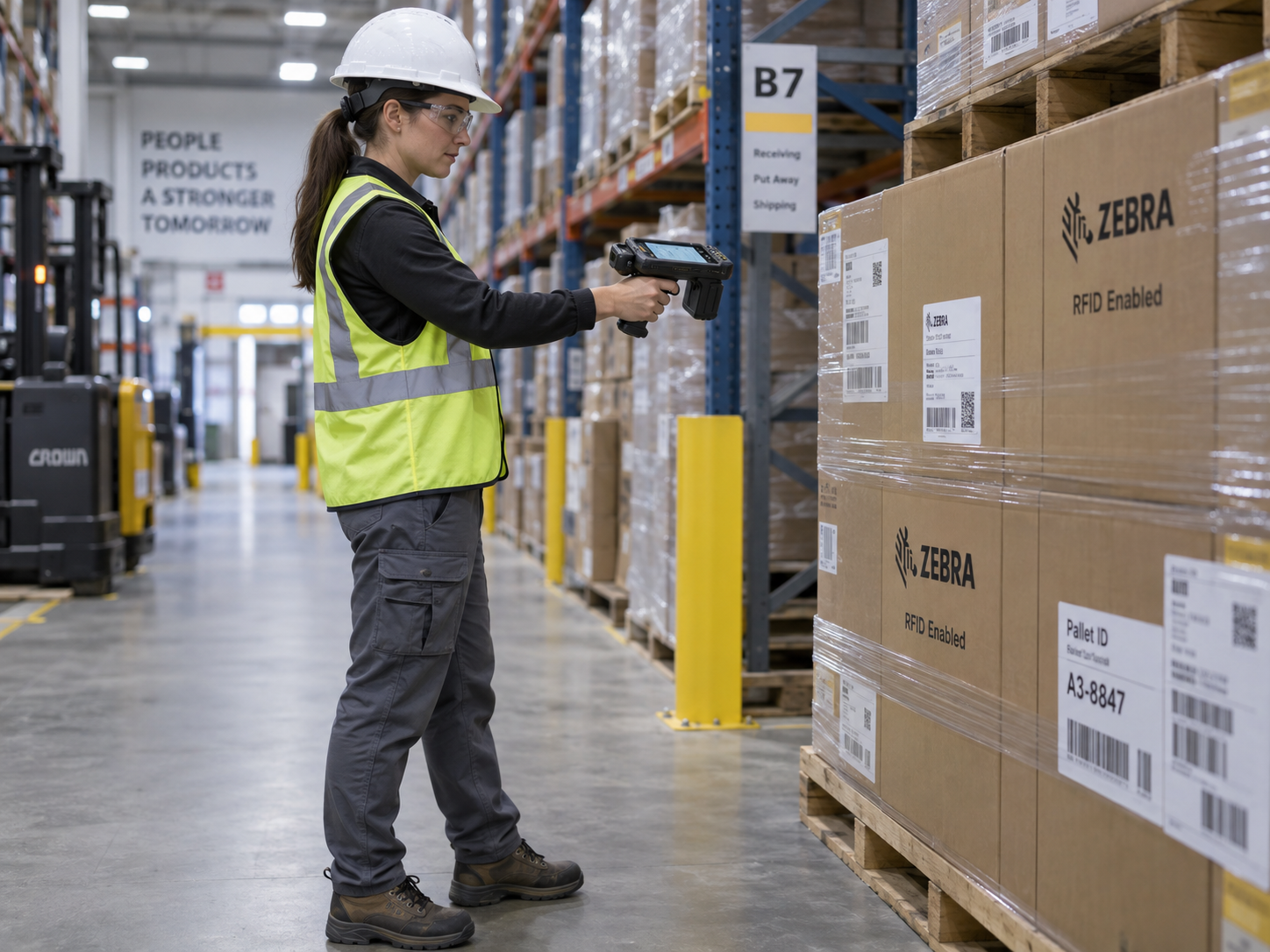

Handheld UHF RFID Reader
A mobile industrial RFID reader for seal verification, yard audits, inventory, asset locating, receiving and shipping — with integrated barcode scanning and Android OS.
Handheld UHF RFID Reader
The Smart Amto Handheld UHF RFID Reader gives warehouse, yard and logistics personnel a mobile RFID identification tool for operations that require flexibility and movement. Workers can verify RFID seals on trailers and containers, conduct yard audits, perform inventory cycle counts, locate specific assets and process inbound and outbound shipments — all from a single device. The Android operating system supports enterprise logistics applications and custom Smart Amto mobile software. Integrated 1D/2D barcode scanning enables dual-mode verification of both RFID and barcode-marked assets. Wi-Fi, Bluetooth and optional cellular connectivity keep the device connected to warehouse management systems and the Smart Amto visibility platform throughout the facility and yard. The drop-rated construction and IP65 sealing protect the device in demanding warehouse and outdoor environments.
Key Benefits
- UHF RFID identification — reads seals, vehicle tags and asset tags at up to 6 m
- Integrated 1D/2D barcode scanner for dual-mode RFID and barcode verification
- Android OS — supports enterprise logistics apps and Smart Amto mobile software
- Wi-Fi 802.11 a/b/g/n/ac for real-time WMS and platform connectivity
- Bluetooth 5.0 for peripheral connectivity
- Optional 4G LTE cellular for yard and outdoor operations beyond Wi-Fi coverage
- Drop-rated construction — 1.5 m drop resistance
- IP65 sealing — protected against dust ingress and water jets
- High-capacity rechargeable battery — full shift operation
- Ergonomic pistol-grip design for extended scanning sessions
Technical Specifications
RFID Frequency
860–960 MHz (UHF)
RFID Protocol
EPC Gen2 v2 / ISO 18000-63
RFID Read Range
Up to 6 m (tag dependent)
Barcode
1D / 2D (integrated imager)
OS
Android 11 or later
Connectivity
Wi-Fi 802.11ac / BT 5.0 / 4G LTE (optional)
Display
5" touchscreen (Gorilla Glass)
Battery
6,000 mAh — full shift operation
Drop Rating
1.5 m (MIL-STD-810G)
IP Rating
IP65
Where This Product Is Used
RFID seal verification on trailers and containers
Yard audits and trailer location
Inventory cycle counting
Asset locating and tracking
Inbound receiving and outbound shipping
Field operations and remote site inspections
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
UHF RFID Vehicle Identification Tag
Long-range passive UHF RFID tags for automated vehicle identification at gates, yards, port terminals and logistics hubs — windshield, headlamp and exterior mounting options.
UHF RFID Vehicle Identification Tag
Smart Amto UHF RFID Vehicle Identification Tags provide long-range passive identification for trucks, trailers, yard tractors, employee vehicles and visitor access at automated gates, port terminals and logistics hubs. When a tagged vehicle approaches an RFID-equipped gate or portal, the reader identifies the vehicle automatically — triggering gate-management actions, WMS/YMS transactions and access-control decisions without the driver stopping or presenting a card. Windshield-mount tags are designed for passenger vehicles and light trucks. Headlamp-mount and exterior-mount tags suit heavy trucks, trailers and yard equipment where windshield placement is not practical. Tamper-evident options prevent tag transfer between vehicles. All tags are passive — no battery required — with an indefinite operational life under normal conditions.
Key Benefits
- Long-range passive identification — vehicles identified at speed without stopping
- Windshield-mount tags for passenger vehicles and light trucks
- Headlamp-mount tags for heavy trucks and yard equipment
- Exterior-mount tags for trailers and assets without windshields
- Tamper-evident options — prevent tag transfer between vehicles
- Passive — no battery required, indefinite operational life
- Unique EPC identifier per tag — serialized fleet identification
- Compatible with Smart Amto gate readers and visibility platform
- UV-resistant construction for outdoor and all-weather operation
- Custom printing and encoding for fleet management programs
Technical Specifications
RFID Frequency
860–960 MHz (UHF)
RFID Protocol
EPC Gen2 v2 / ISO 18000-63
Memory
EPC 96-bit (configurable)
Read Range
Up to 10 m (reader and mounting dependent)
Power
Passive (no battery)
Mounting
Windshield / Headlamp / Exterior
Tamper
Tamper-evident options available
Operating Temp
-40°C to +85°C
Construction
UV-resistant, all-weather rated
Marking
Custom print and encoding available
Where This Product Is Used
Fleet vehicle identification at distribution center gates
Employee and visitor vehicle access control
Yard tractor and equipment identification
Automated port terminal vehicle processing
Logistics hub and intermodal facility access
Truck and trailer identification for YMS integration
Vehicle Identification Flow
Vehicle RFID Tag
Gate Antenna
RFID Reader
Smart Amto Platform
Customer System
Frequently Paired With
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.

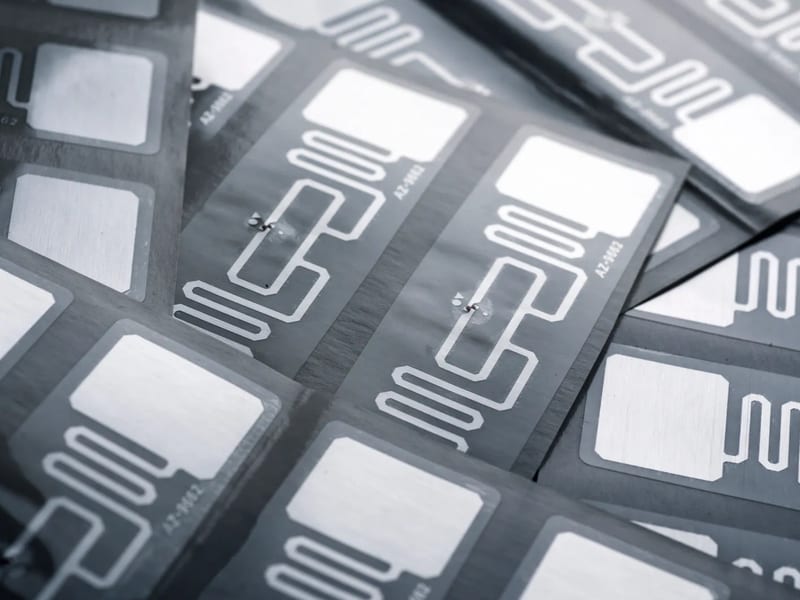

Industrial UHF RFID Asset Tag
Durable passive UHF RFID tags for pallets, metal containers, returnable transport items, tools and yard assets — on-metal, high-temperature and long-range options available.
Industrial UHF RFID Asset Tag
Smart Amto Industrial UHF RFID Asset Tags are engineered for the demanding conditions of logistics, manufacturing and supply-chain environments. The range covers on-metal tags for direct application to steel pallets, metal containers, racks, cages and equipment — where standard RFID tags would be detuned by the metal surface. High-temperature variants withstand autoclave, paint-oven and industrial wash-down processes. Long-range options extend read distances for wide-aisle warehouse portals and outdoor yard applications. Small form-factor tags suit tight spaces on tools, components and small equipment. All tags are passive — no battery required — and carry a unique EPC identifier for serialized asset tracking. Custom printing, laser etching and encoding are available for asset labeling programs.
Key Benefits
- On-metal tags — designed for direct application to steel and aluminum surfaces
- High-temperature variants — rated for autoclaves, paint ovens and wash-down processes
- Long-range options for wide-aisle portals and outdoor yard identification
- Small form-factor options for tools, components and tight-space applications
- Passive — no battery required, indefinite operational life
- Unique EPC identifier per tag — serialized asset tracking
- IP68-rated options for wash-down and submersion environments
- UV-resistant construction for outdoor yard and terminal applications
- Compatible with Smart Amto readers and standard UHF infrastructure
- Custom printing, laser etching and encoding for asset labeling programs
Technical Specifications
RFID Frequency
860–960 MHz (UHF)
RFID Protocol
EPC Gen2 v2 / ISO 18000-63
Memory
EPC 96-bit (configurable up to 512-bit)
Mounting Surface
On-metal options; non-metal options
Temperature
Standard: -40°C to +85°C; High-temp: up to +220°C
IP Rating
IP67 standard; IP68 options available
Power
Passive (no battery)
Read Range
0.3 m – 8 m (model and surface dependent)
Form Factor
Multiple — label, hard tag, screw-mount, rivet
Marking
Custom print, laser etch and encoding
Where This Product Is Used
Steel pallets and metal containers
Returnable transport items (RTIs) and totes
Warehouse racks, cages and roll cages
Tools and industrial equipment
Yard assets and trailers
Automotive and manufacturing components
Pharmaceutical and food processing equipment
Frequently Paired With
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
Smart Amto Automated RFID Gate Identification System
A complete RFID infrastructure package for automatic identification of trailers, vehicles, seals and tagged assets at logistics facility gates — from single-lane to multi-site deployments.
Smart Amto Automated RFID Gate Identification System
The Smart Amto Automated RFID Gate Identification System is a complete infrastructure solution that automatically identifies trailers, vehicles, RFID seals and other tagged assets as they enter or exit warehouses, distribution centers, factories, ports and logistics facilities. As a vehicle approaches the gate, vehicle detection sensors trigger the RFID reader array to identify all tagged assets — trailer ID, vehicle tag, RFID seals — in a single pass at normal driving speed. The edge controller processes the read events, validates them against expected transactions and delivers the results to the customer's WMS, YMS, TMS or ERP system via REST API or MQTT. Gate-control outputs trigger barriers, LED indicators and traffic lights based on configurable rules. The system is scalable from a single inbound/outbound lane to multi-gate, multi-site networks managed through the Smart Amto cloud portal.
Key Benefits
- Full-lane RFID identification — trailers, vehicles and seals identified in a single pass
- Vehicle detection sensors trigger reads automatically — no driver action required
- Edge controller processes events locally — sub-second gate response
- REST API and MQTT delivery to WMS, YMS, TMS, ERP and access-control systems
- Gate-control outputs for barriers, LED indicators and traffic lights
- Weatherproof equipment enclosures for outdoor gate installations
- Offline event buffering — no reads lost during network interruptions
- Scalable from single lane to multi-gate, multi-site networks
- Remote management, monitoring and diagnostics via Smart Amto cloud portal
- Professional installation, commissioning and integration support
Technical Specifications
RFID Standard
EPC Gen2 v2 / ISO 18000-63
Frequency
860–960 MHz (region dependent)
Lane Width
Up to 6 m (standard); wider on request
Vehicle Detection
Inductive loop / IR sensor (configurable)
Gate Response
< 500 ms (local edge mode)
Integration
REST API / MQTT / Database / Direct WMS
Edge Processing
Local controller with offline buffering
Enclosure
IP65 weatherproof (outdoor rated)
Traffic Control
Barrier / LED / Traffic light outputs
Connectivity
Ethernet / 4G LTE cellular backup
Where This Product Is Used
Distribution center inbound and outbound gates
Warehouse and factory entrance/exit lanes
Port and container terminal vehicle gates
Logistics yard access control
Retail DC and cross-dock facility gates
Cold-storage and food distribution facility gates
Gate Identification Process
Vehicle approaches
Sensor detects vehicle
RFID reader activates
Tags and seals captured
Data validated
Transaction recorded
Gate / signal responds
Frequently Paired With
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
Smart Amto RFID Visibility Cloud Platform
A centralized software platform for managing RFID events, seal identification, trailer tracking, asset history and operational intelligence — across single facilities or global multi-site networks.
Smart Amto RFID Visibility Cloud Platform
The Smart Amto RFID Visibility Cloud Platform is the software layer that turns raw RFID reads into actionable operational intelligence. It collects events from Smart Amto RFID gate systems, fixed readers and handheld devices across one facility or a global network of sites, and presents them as meaningful transactions — trailer arrivals and departures, seal verifications, asset movements, tamper alerts and exception events. The platform manages device health, reader configuration and firmware updates remotely. Role-based user permissions control access for operations teams, security personnel, IT administrators and executive reporting users. A configurable REST API and MQTT interface deliver events to customer WMS, YMS, TMS and ERP systems in real time. The platform is available as a Smart Amto-hosted cloud service or as an on-premise deployment for customers with data-sovereignty requirements.
Key Benefits
- Centralized RFID event management across single or multi-site global networks
- Trailer arrival and departure transactions with full RFID seal verification
- Tamper-event alerts — immediate notification and searchable event history
- Asset history — complete read log for every seal, vehicle tag and asset tag
- Device management — reader health, configuration and remote firmware updates
- Role-based user permissions for operations, security, IT and executive users
- REST API and MQTT for real-time event delivery to WMS, YMS, TMS and ERP
- Configurable reports and dashboards for operational and compliance reporting
- Cloud SaaS or on-premise deployment for data-sovereignty requirements
- Professional services for integration scoping, development and go-live support
Technical Specifications
Deployment
Cloud SaaS (Smart Amto hosted) or on-premise
API
REST (JSON) + MQTT
Integration
WMS / YMS / TMS / ERP / Access Control
Authentication
OAuth 2.0 / LDAP / Active Directory
User Permissions
Role-based access control (RBAC)
Multi-site
Supported — unlimited locations
Alerts
Tamper, exception, device health (email / webhook)
Data Retention
Configurable — up to 7 years
Reporting
Configurable reports + scheduled exports
Security
TLS 1.3, AES-256 encryption at rest
Where This Product Is Used
Single-facility RFID gate event management
Multi-site supply-chain visibility and reporting
Seal and trailer identification records for compliance
Chain-of-custody documentation for customs and audit
Enterprise RFID integration with WMS and ERP
Tamper-event management and security incident investigation
RFID Data Becomes Operational Intelligence
Global Sites
Readers
Assets
Seal Events
Gate Transactions
Alerts
Frequently Paired With
Ready to Discuss Your Application?
Contact Smart Amto to request a sample, discuss volume pricing, or talk to an engineer about the right configuration for your environment.
